How to connect an AI chatbot to a REST API without code
Turn one plain-English request into a reviewed REST connector, then prove that the correct email reveals only approved fields while a wrong email reveals nothing.
When you connect a chatbot to a REST API, validation and least-privilege output are just as important as successfully sending the request.
An API Connector gives the assistant a narrowly defined tool for reading or changing live data. It is different from the knowledge base: indexed sources answer from previously processed content, while a connector sends a new HTTP request only when the visitor’s request matches its tool instructions.
This beginner example uses the public JSONPlaceholder test API and no secret. A GET request for customer ID 1 returns a fictional JSON object. Before the assistant may show the approved name, company and website fields, a validation rule compares the visitor’s email with the `email` value in that response.
You will test both directions in separate conversations. Lowercase `sincere@april.biz` must match the response value `Sincere@april.biz` and allow exactly Leanne Graham, Romaguera-Crona and hildegard.org. `wrong@example.com` must return only the neutral mismatch message and must not expose any customer value.
No-code does not remove security responsibility. The AI helper creates a first draft; you still verify HTTPS, authentication, least-privilege access, field types, placeholders, response paths, failure messages and both allow and deny behavior before activation.
Privacy-protected two-click player
How to Connect an AI Chatbot to a REST API (No Code)
Connect a chatbot to a REST API without code. Map typed fields, validate responses, restrict output and prove allowed and denied requests safely.
The YouTube player stays blocked until you choose Play. Loading it connects your browser to YouTube and may transfer technical data to Google.
Open directly on YouTubeWhat you will have at the end
- A plain-English mental model for when an API Connector runs
- An AI-generated connector reviewed field by field
- Required user ID and email inputs with case-insensitive response validation
- A real successful JSONPlaceholder lookup with three explicitly approved facts
- A separate blocked wrong-email attempt with zero customer-data leakage
- A reusable production security, error and cleanup checklist
Before you start
- Standard plan or higher, or an active trial with API Connector access
- A non-production assistant dedicated to this tutorial
- A documented HTTPS endpoint and its expected JSON response
- Non-sensitive test records; never use real customer data in the tutorial
- A written allow expectation and a written deny expectation
- For production later: a dedicated least-privilege API credential stored outside prompts
Collect, call, validate, answer
The tool prompt decides when the connector is eligible. Typed fields tell the assistant which visitor values to collect. Placeholders such as `{user_id}` map those values into the URL, headers or request body. Response validation then compares a visitor value with a JSON path before the model receives an allowed result.
In this example, the assistant collects `user_id` and `email`, requests `/users/1`, reads the JSON and applies `email equals response.email, ignoring case`. A failed rule returns only its configured error message; the response data must not reach the visitor.
The API—not the language model—must remain the authority for authentication and permissions. Use the connector validation as an additional presentation guard, not as a replacement for real API authorization. The connector should receive only the read or write scope required for this one job.
01–07
Set it up step by step

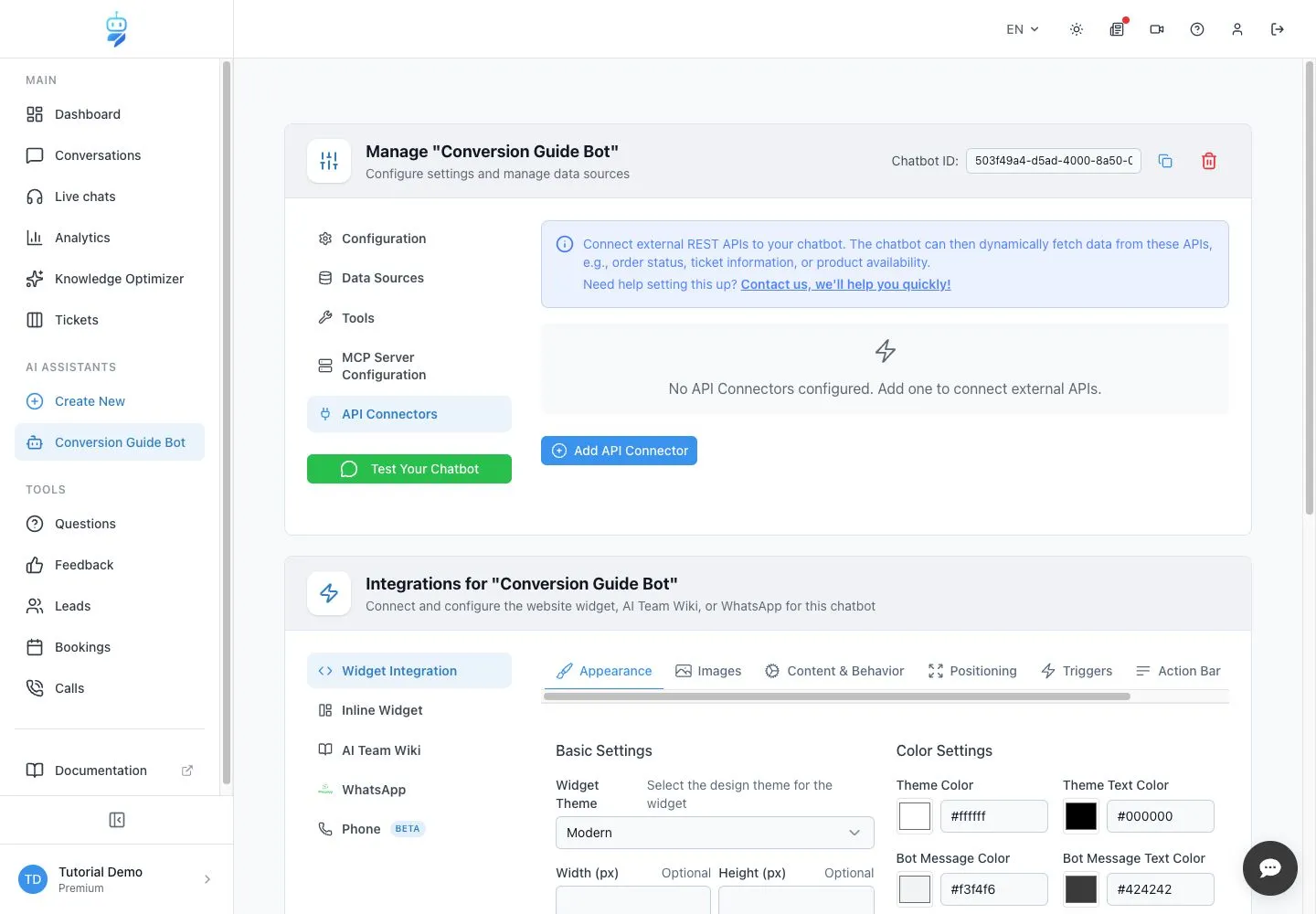

Open API Connectors and define one narrow job
Start on the intended non-production assistant before reviewing or adding a live tool.
Open the assistant workspace and choose API Connectors. This is the list of live tools assigned only to that assistant. An existing card shows its status, HTTP method, endpoint, prompt summary and required visitor fields; the Add API Connector button starts a separate configuration.
Write the job in one sentence before selecting Add: “Look up one fictional JSONPlaceholder customer after user ID and email verification.” Keep order changes, ticket creation or any write action in another connector with separate permissions.
For a first project, choose a read-only GET request. Read operations are easier to inspect and recover from than POST, PATCH or DELETE actions, but they still require validation when returned data should not be public.

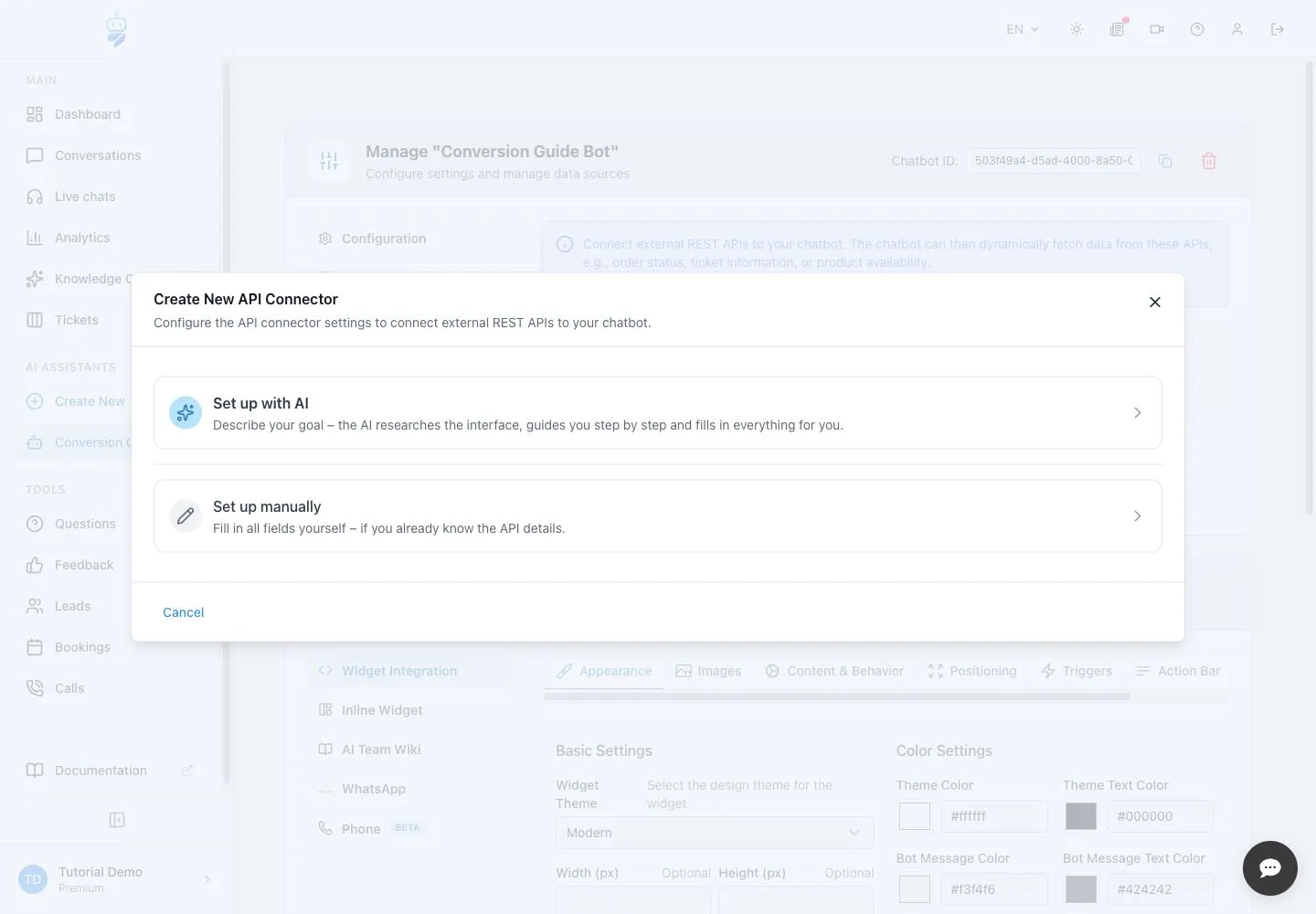

Choose Set up with AI
Describe the outcome instead of translating documentation field by field.
The dialog offers Set up with AI and Set up manually. Choose the AI assistant when you have a clear endpoint and outcome; use manual setup when an approved configuration must be copied exactly.
The assistant can research and populate fields, but you remain responsible for reviewing endpoint, method, headers, field types, validation and prompt before saving. Do not paste production secrets into the chat.

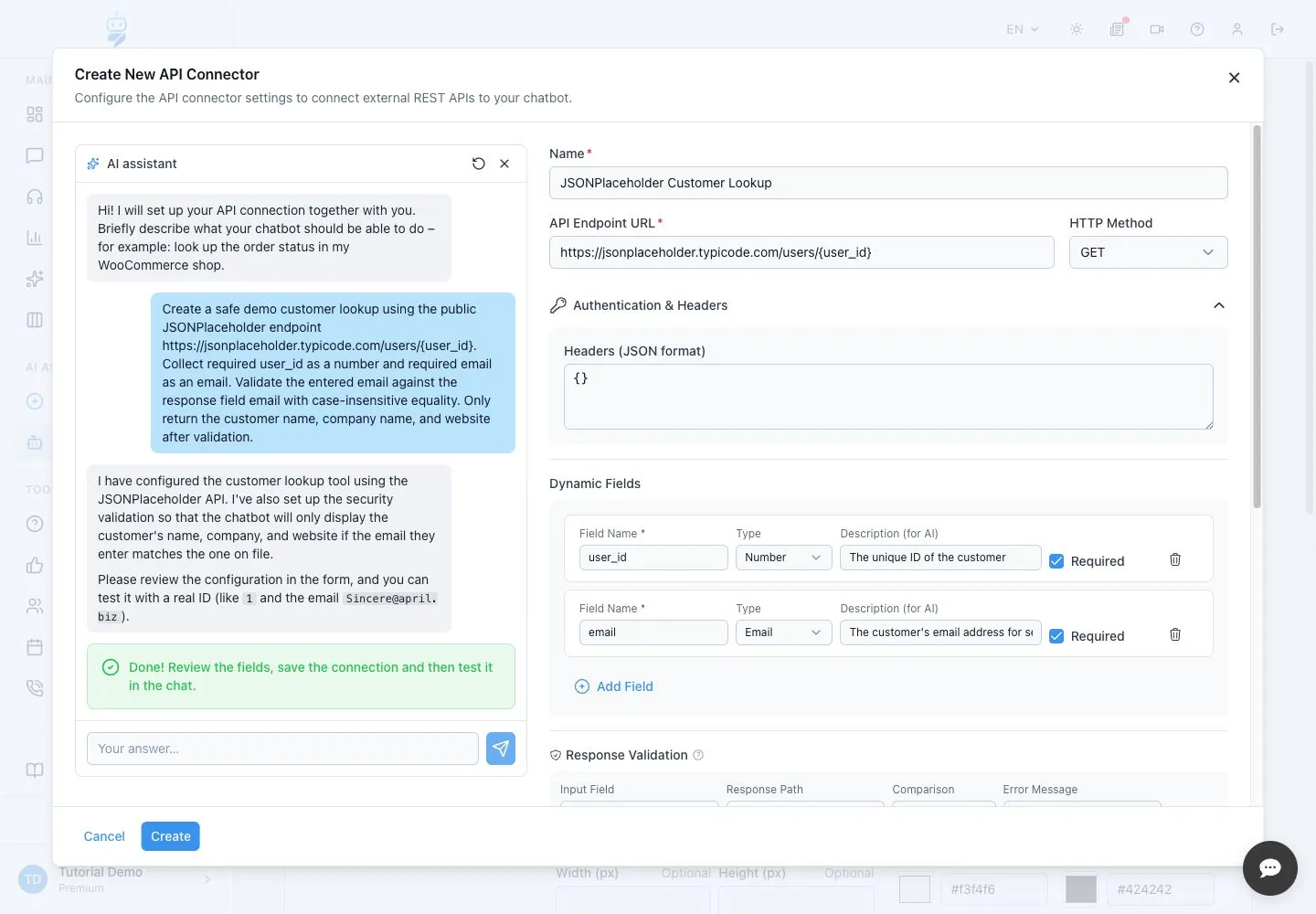

Describe the JSONPlaceholder lookup and review generated fields
The AI helper fills a complete, inspectable first draft.
Ask for `https://jsonplaceholder.typicode.com/users/{user_id}` with required `user_id` as Number and `email` as Email. Instruct the assistant to validate email against response path `email` without case sensitivity and reveal only name, `company.name` and website.
The verified helper created “JSONPlaceholder Customer Lookup”, GET, empty headers, the two required fields and the correct endpoint placeholder. JSONPlaceholder contains fictional demo records, so the tutorial does not expose real customer data or credentials.

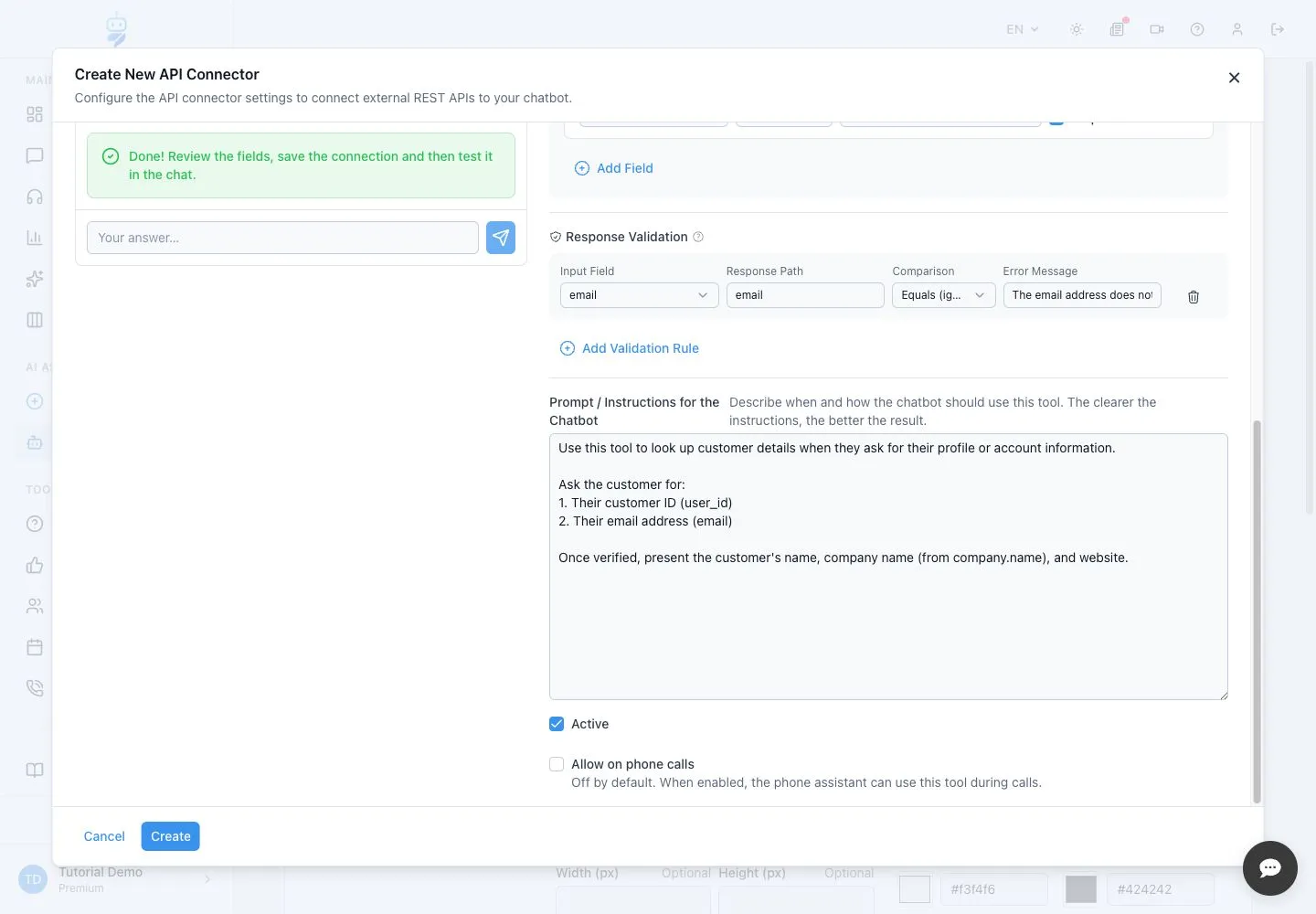

Review validation and tool instructions
Security controls must be explicit before Create.
Confirm the validation compares input field `email` with response path `email` using Equals (ignore case). Use a neutral failure message: “The email address does not match this customer profile. Please try again.”
The tool prompt must say when to use the connector, which fields to collect and which response fields may be presented. For production, use a dedicated read-only credential in headers or server-side secret handling and never let an AI-generated patch broaden permissions unnoticed.

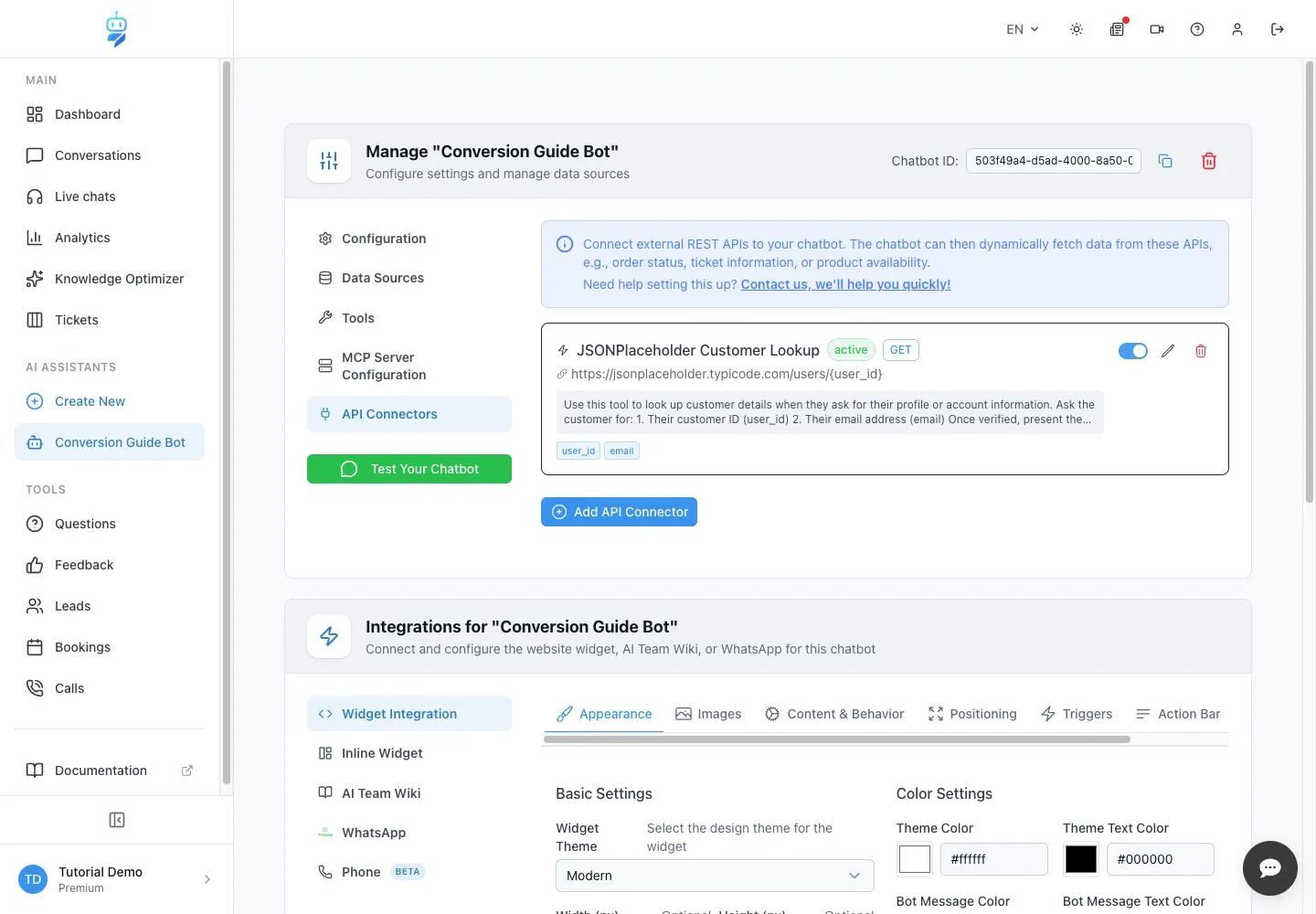

Create and verify the active connector card
Confirm method, endpoint, fields and active status together.
Select Create and return to the list. The active card should show JSONPlaceholder Customer Lookup, GET, the endpoint, prompt summary, `user_id` and `email` fields and the enabled switch.
Do not proceed to chat testing if the card is inactive or the endpoint differs from the reviewed form. A saved configuration is not yet proof that the API call and security rule work.

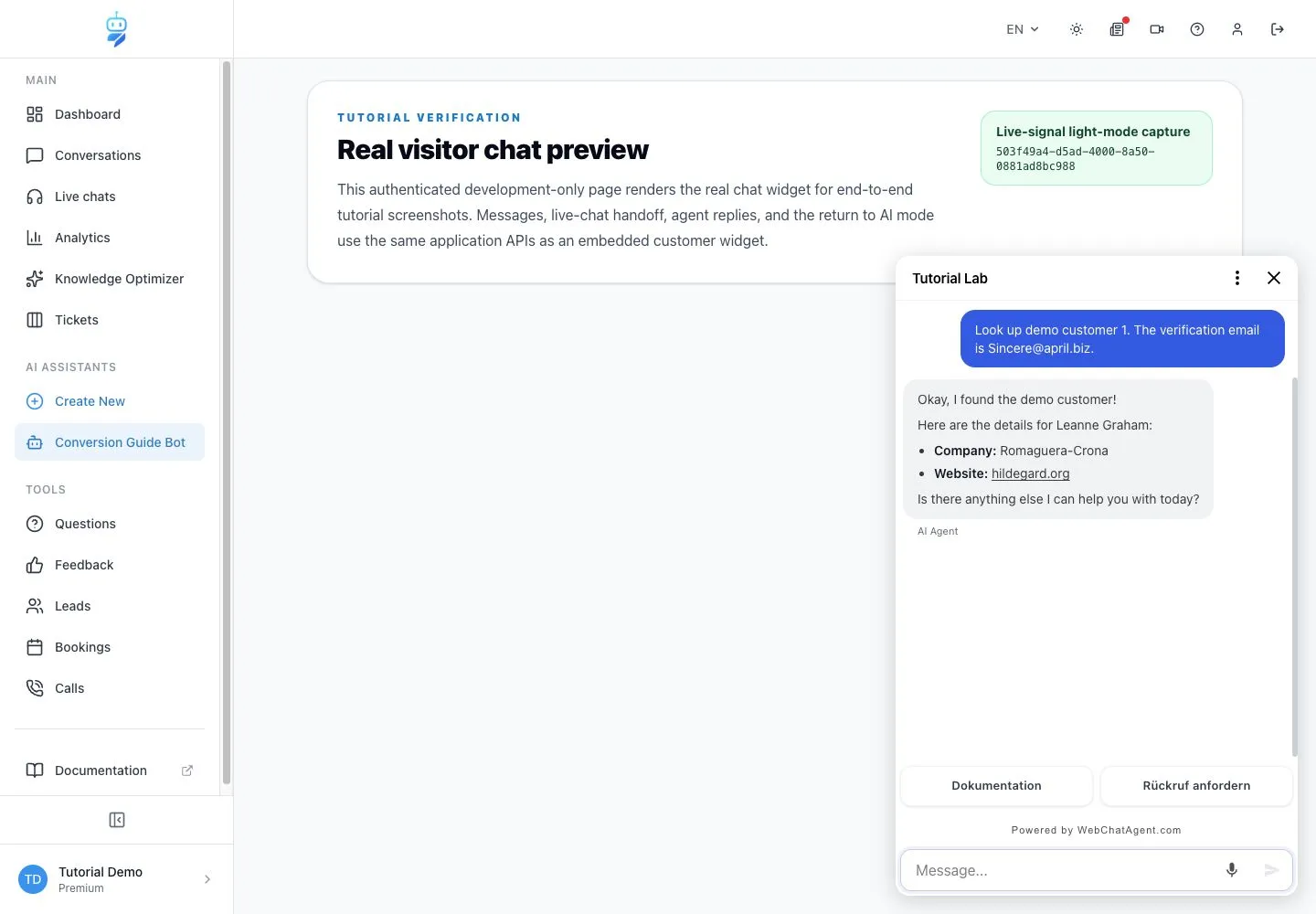

Test the authorized customer lookup
Use a fixed record and deliberately change email capitalization to prove the selected comparison.
Open Test chatbot in a fresh preview and ask: “Look up demo customer 1. The verification email is sincere@april.biz.” The API response contains `Sincere@april.biz`; the lowercase visitor value still passes because the selected comparison ignores case. The answer must return Leanne Graham, Romaguera-Crona and hildegard.org.
Record the exact input and visible answer. This is the allow-path baseline for future regression tests. A different model may phrase the text differently, but the three authorized facts must remain correct and response email, username, phone, address, coordinates, ID and raw JSON must stay hidden.

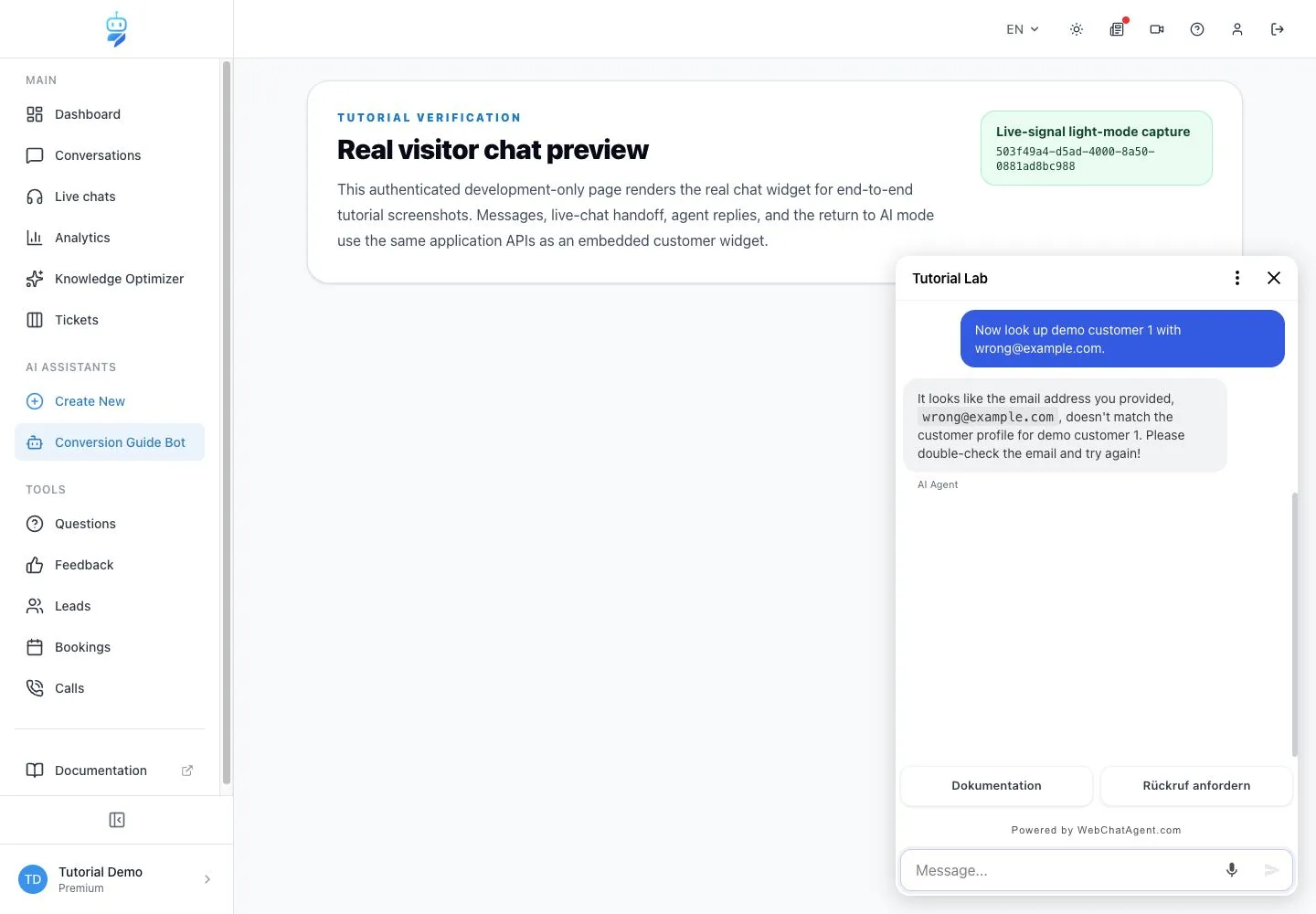

Prove that a wrong email is blocked in a fresh conversation
The deny-path test is as important as the successful result and must not inherit the allow answer.
Start a new chat session so the previous Leanne Graham answer is not conversation context. Ask for customer 1 with `wrong@example.com`. Pass only when the chatbot shows the configured mismatch message and reveals none of these values: Leanne Graham, Sincere@april.biz, Romaguera-Crona or hildegard.org.
This proves presentation validation for the demo; it does not turn JSONPlaceholder into a real authentication service. A production API must authorize access server-side before returning protected data, ideally returning only the fields the assistant is allowed to present.
Repeat the deny test after changes to fields, validation paths, endpoint response shape, prompt or model. Also test missing fields, invalid input types, malformed JSON, timeouts, 401/403, 404 and rate limits. Disable the connector immediately if any failure exposes protected fields.
Example & result
See the practical test and its result
Every tutorial includes a fixed input, the expected outcome and a transparent record of what was actually verified locally.
Practical example: Connect an AI chatbot to a REST API without code
This exact scenario was completed with the temporary tutorial account.
Exact test input
Look up demo customer 1 with lowercase sincere@april.biz, then start a fresh chat and repeat with wrong@example.com.
Expected result
The matching email reveals only name, company and website; the wrong email reveals no customer record.
What was actually verified
The real connector returned Leanne Graham, Romaguera-Crona and hildegard.org for the valid input. A separate deny session blocked wrong@example.com with the configured validation message and exposed no customer value.
Tips & tricks
Make the setup reliable
Test with realistic examples, record your baseline and change one setting at a time. That makes real improvements visible.
Use a read-only API identity
The chatbot should not receive write or delete permissions when it only needs order status.
Test malformed responses
Verify timeouts, missing fields, non-200 responses and invalid JSON so visitors receive a safe fallback.
Choose a model with reliable tool use
Compare the same allow and deny prompts in Model Arena. Prefer the fastest economical model that consistently collects all fields, calls the connector once and respects validation.
Keep allow and deny sessions separate
A fresh deny session proves that the blocked answer did not copy customer values from earlier conversation context.
Treat connector changes like code changes
Record the endpoint version, prompt, fields, validation paths and test results together. Require review before widening a method, host or permission scope.
When something does not work
Troubleshooting
Check status, permissions and test data systematically before changing the model or prompt.
The connector returns 401 or 403
Verify the authentication header, token scope and API-side permission with a non-production test credential. Never solve the problem by granting a broad administrator token.
Validation always fails
Inspect the real JSON response and confirm the response path, value type and comparison mode. Nested values such as `company.name` require the exact path.
The chatbot exposes fields that were not intended
Disable the connector immediately, narrow the tool prompt and API response, then repeat the deny tests. Prefer a server-side endpoint that returns only approved fields.
The assistant answers from memory instead of calling the connector
Make the tool prompt specific about the intent and required fields, remove competing connectors from the test assistant and begin with a fresh conversation. The answer must match the current API response, not a previously seen value.
The API returns 404 for a missing record
Use a neutral not-found response that does not confirm sensitive identifiers. Do not retry with guessed IDs and keep the connector from presenting an earlier successful result.
The request times out or returns malformed JSON
Show a temporary-unavailable fallback, log the technical failure outside the visitor answer and avoid displaying partial response text. Retry only according to a documented policy so one visitor request cannot create a request storm.
Ready for a production-style test
Review connector logs and permissions after launch. Add further actions only as separate, narrowly scoped connectors with their own validation.
